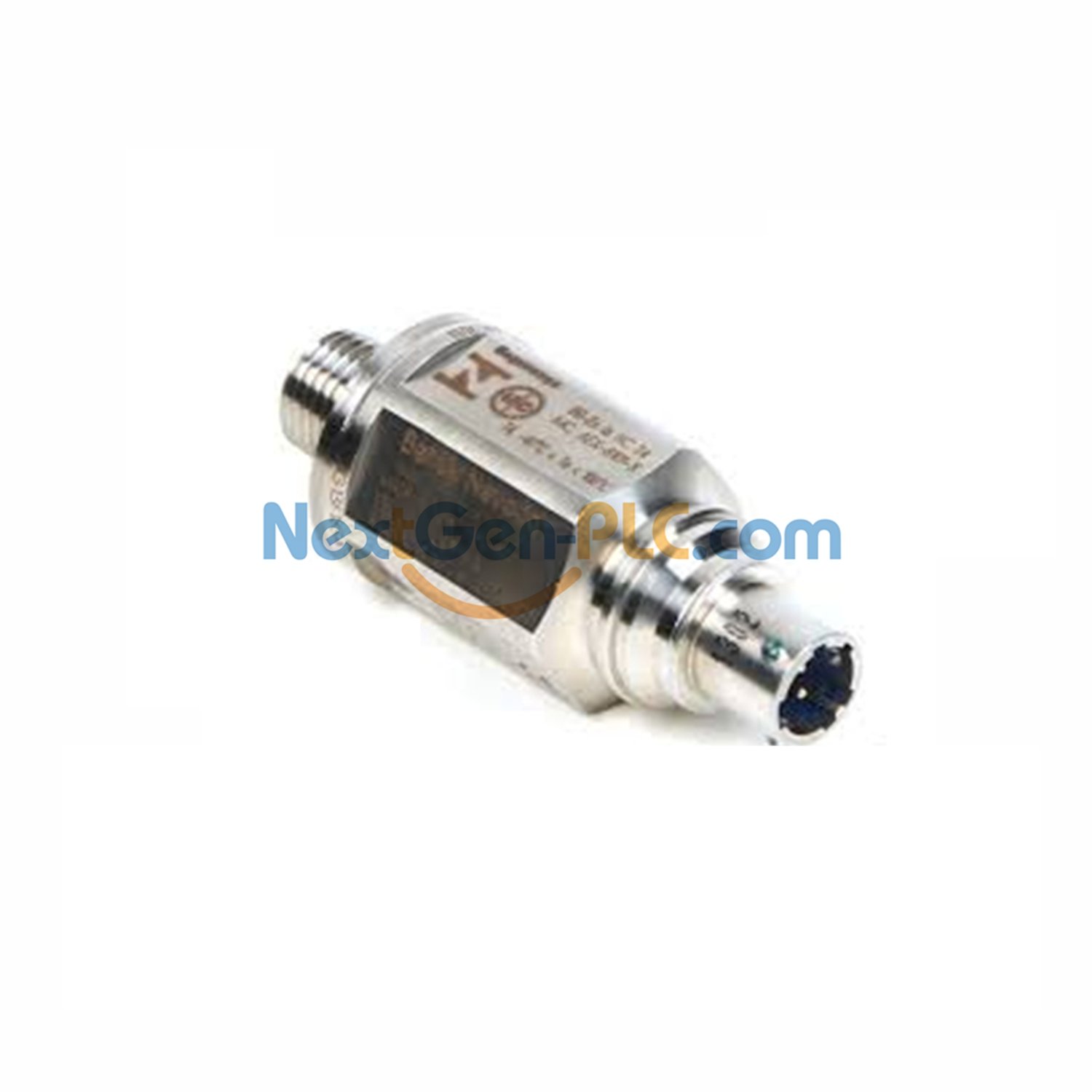

190501 Velomitor CT Transducer | 190501-12-99-00 | Bently Nevada

Bently Nevada 190501-12-99-00 Velomitor CT Sensor: Technical Breakdown

Model Suffix Tree

190501 (Base Model)
├─ 12 → Mounting Hardware: 3/8"-24 to M8x1 threaded plate stud
├─ 99 → Connection: 32 ft pre-attached cable (IP67 shielded)
└─ 00 → Certification: Custom OEM configuration

Key Technical Data

• Frequency Range: 1.5 Hz–1 kHz (±3 dB) for ultra-low speed detection
• Shock Survival: 5,000 g peak (tested per MIL-STD-810)
• Cable Capacity: 305 m max with 02173006 specialty cable
• Magnetic Immunity: <0.0068 mm/s/gauss at 50 Hz
• Weight: 297 g (10.5 oz) with M8x1 mounting plate

Performance Highlights

Unique Features

• Internal strain relief for cable vibration resistance
• Reverse polarity protection (10-30 VDC input)
• Electrically isolated base for ground loop prevention

Download PDF file here:190501-Datasheet
