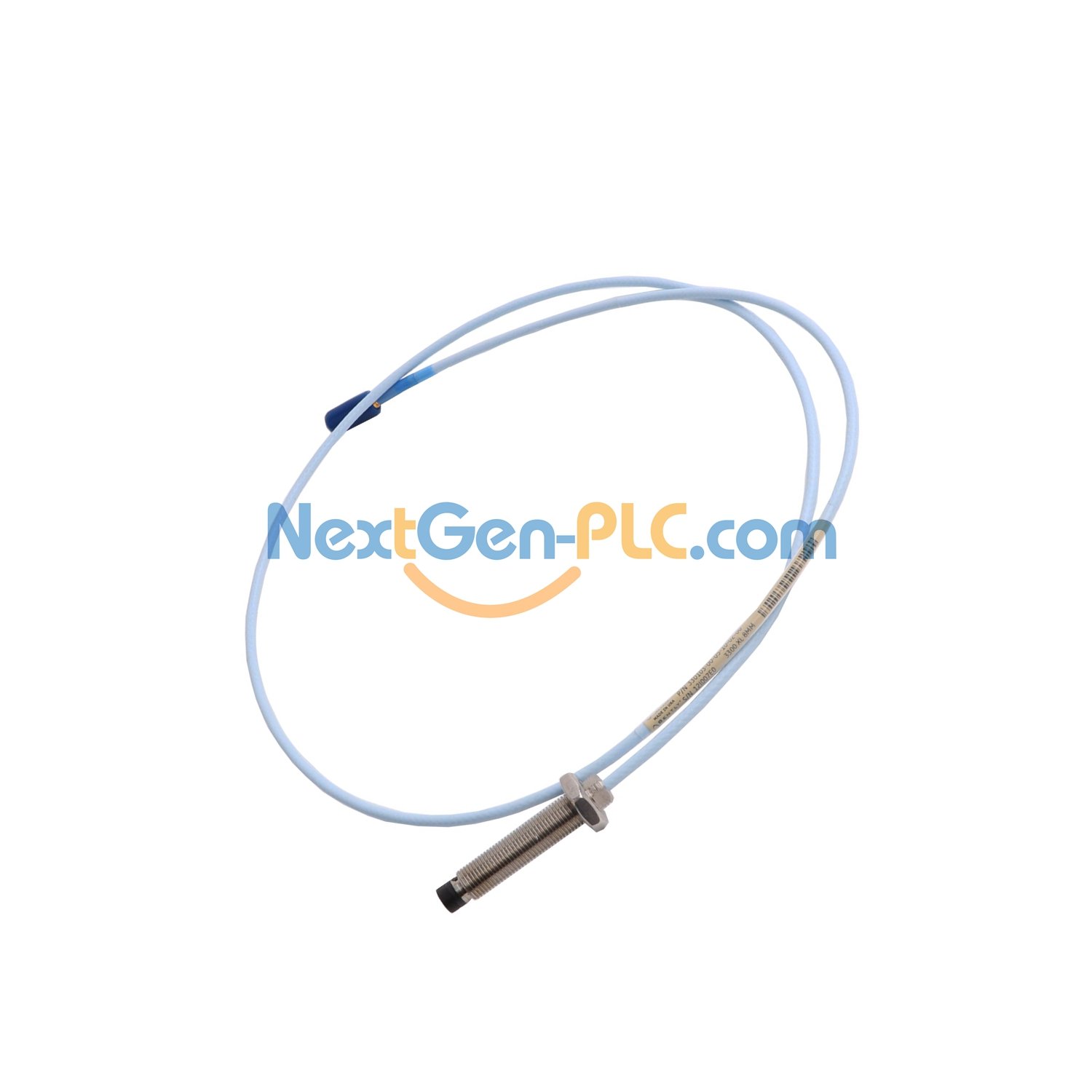

Bently Nevada 330191-00-16-10-05 Proximity Probe
Key Specifications
• Size: 8mm diameter
• Cable: 1.0 meter (3.3 ft)
• Case Length: 1.6 inches
• Approvals: CSA, ATEX, IECEx
• Thread: 3/8-24 UNF
Main Features
- ✓ Patented TipLoc design for durability
- ✓ 330N pull strength (CableLoc technology)
- ✓ Wide temperature range (-55°C to +232°C)
- ✓ Multiple safety certifications included
- ✓ Stainless steel construction
Technical Details
| Power: -17.5V to -26V DC | Weight: 323 g/m |
| Resistance: 7.59Ω ±0.50 | Torque: 0.565 N•m max |
Applications
Power Generation Turbines
Industrial Compressors
Process Pumps
Large Motors
Installation Notes
- Align probe with mounting point
- Hand-tighten threads first
- Final torque to 0.565 N•m
- Connect to monitoring system
Important: This version includes CSA, ATEX, and IECEx approvals for hazardous locations.
Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
