330191-00-33-10-CN | Bently Nevada | 3300 XL 8 mm ETR Probe

Bently Nevada 330191-00-33-10-CN Proximity Probes – Reliable Industrial Sensors

What It Is

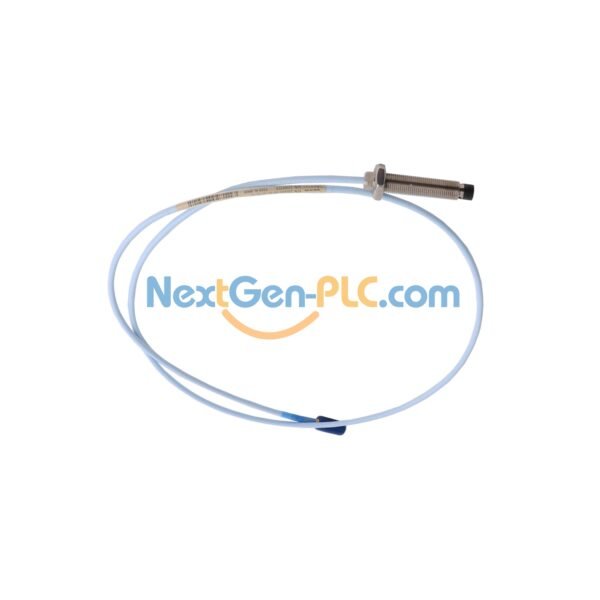

This new Bently Nevada 330191-00-33-10-CN probe is an 8mm proximity sensor for industrial use. It comes in factory packaging. New tech like TipLoc (stronger tip-body bond) and CableLoc (330N pull strength) makes it tough. You can add a FluidLoc cable to stop liquid leaks.

Key Specs

Brand: Bently Nevada
Model: 330191-00-33-10-CN (3300 XL 8mm ETR Probe)
Size: 1.0m long (3.3ft), 3.3-inch case
Materials: PPS plastic tip, 303/304 stainless steel case
Cable: 75Ω triaxial (FEP or PFA insulation); optional armor
Power: Needs -17.5Vdc to -26Vdc (nonincendive); -23Vdc to -26Vdc (barriers)
Output: 50Ω resistance; changes less than 2mV per volt input
DC Resistance: 7.59±0.50Ω (1.0m probe)
Weight: 323g per meter (11.4 oz)
Connector: Gold-plated brass/beryllium copper; max torque 0.565N•m
Temperature: Works from -55°C to +232°C (T1 class)

Model Numbers Explained

330191: Main model code
33: Case length (3.3 inches)
10: Total length (1.0 meters)
CN: Country-specific approval

Installation & Compatibility

Use with BN extension cables and BN Prox systems. Screw in up to 0.563 inches (3/8-24 thread). Sealed with a Viton O-ring (no pressure tests before shipping).

Packaging

Comes in original factory-sealed packaging.
Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
