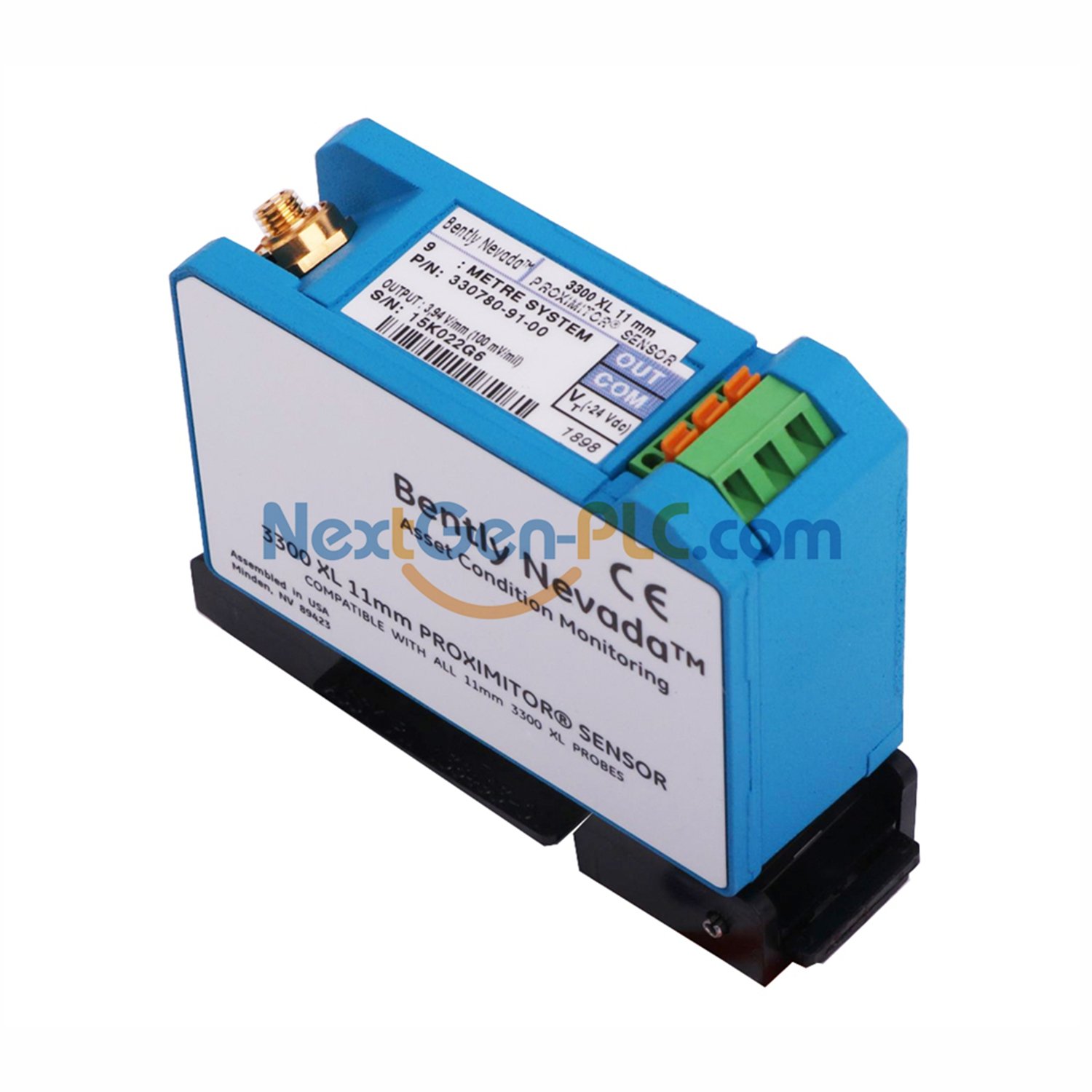

330780-X1-05 – Bently Nevada – 3300 XL Proximitor Sensor

Bently Nevada 3300 XL Sensor: Dual-Range DIN Hero

📌 Model Magic

330780-X1-05
X1 = 5m(16.4ft) or 9m(29.5ft) DIN mount
05 = CE/ATEX/IECEx certified

🚀 Superpowers

✅ Two cable options in one model
✅ Survives -62°F to +212°F
✅ 100% humidity protection
✅ 0.3mm thin aluminum body

⚡ Energy Stats

▸ -17.5V to -26V DC power
▸ 50Ω output resistance
▸ <2mV/V sensitivity
▸ 12mA low consumption

🔧 Smart Setup

• Choose 5m/9m during ordering
• DIN rail snap-fit in 3 seconds
• Keep 25cm from power sources
• Steel calibrated (custom options)

🌐 Global Compliance

Meets:
▸ EU Machinery Directive
▸ ATEX Zone 2
▸ IECEx explosion standards

📦 Kit Contents

– Sensor unit (6.35×6.12cm)
– Your choice: 5m/9m cable
– DIN rail mounting kit
– Humidity test certificate

🏗️ Where It Shines

• Offshore oil platforms
• Wind turbine gearboxes
• Paper mill rollers
• Metro train tracks

⚠️ Must-Know

Never use >-23.5V with barriers.
Re-calibrate after 300hrs in dusty environments.

🛡️ Guarantee

1-year defect protection

Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
