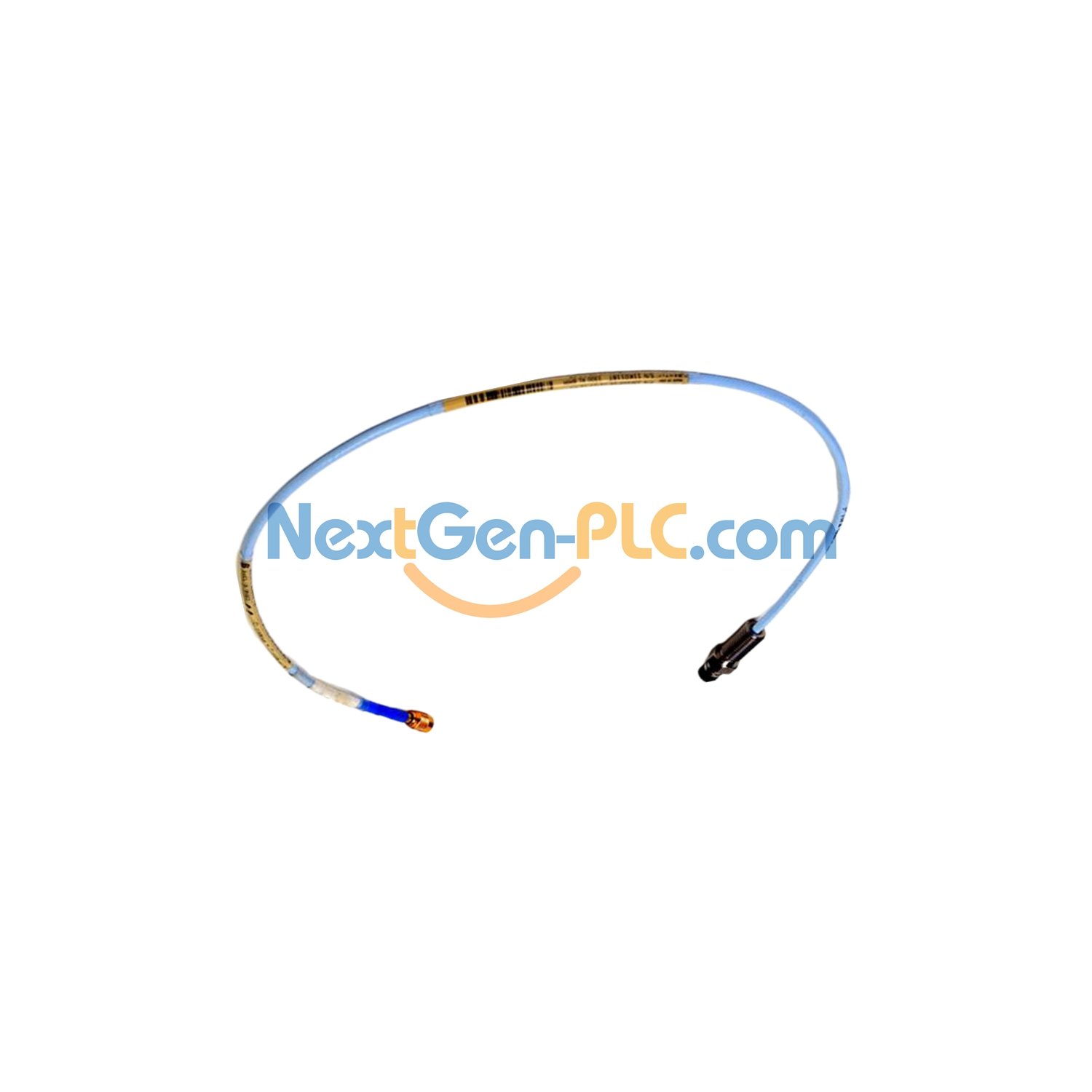

New 5mm Proximity Probe Bently Nevada 330171-04-12-05-02-CN

Bently Nevada 5mm Proximity Sensor: Compact Industrial Monitoring

Core Product Features

330171-04-12-05-02-CN vibration probe with 0.5m cable and 1/4-28 UNF threading. Features country-specific certification (CN) and operates in extreme environments from -35°C to 177°C. Perfect for tight-space installations.

Technical Specifications

• Brand: Bently Nevada
• Complete Model: 330171-04-12-05-02-CN
• Cable Length: 0.5 meter (1.6 ft)
• Case Length: 1.2 inch
• Voltage Range: -17.5 to -26 VDC
• Current Draw: 12 mA max
• Thread Engagement: Max 0.375 inch
• Material: PPS tip with 304 stainless housing

Performance Details

Response: <2mV/V supply sensitivity
Connection: ClickLoc coaxial connector
Durability: 222N tensile strength rating
Installation: Torque to 5.1 N·m (45 in-lb)
Bend Radius: Minimum 25.4mm

Mounting Instructions

Use #3 or larger tap drill for 1/4-28 holes. Ensure thread engagement ≤0.375 inch. Maintain minimum bend radius during cable routing.

Compatibility & Approvals

Designed for Bently Nevada 3300 monitoring systems. Includes country-specific CN certification. Certificate of Origin (COO) available.

What’s Included

• 5mm proximity probe
• Installation documentation
• Optional COO documentation

Quality Guarantee

1-year manufacturer warranty

Download PDF file here:3300 5 mm Transducer System Datasheet – 172036
